2909

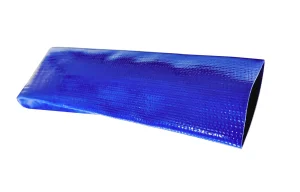

XPLE Chem HoseProduct Specifications
- A versatile and flexible hose for chemical suction and transfer
- Corrugated cover for high flexibilty
- Verify chemical solution rating before using at elevated temperatures
TUBE MATERIAL
Cross-linked Polyethylene, Clear
COVER MATERIAL
EPDM
PRIMARY APPLICATION
Chemical
TEMPERATURE MIN. (F)
-40
TEMPERATURE MAX. (F)
194
Our Range of Products
Export Specifications
| PART # | HOSE I.D. (inches) |
HOSE O.D. (inches) |
Burst Pressure (PSI) |
Min. Bend Radius (Inches) |
WEIGHT: LBS / FT | REINFORCEMENT |
|---|---|---|---|---|---|---|
|
2909GN-0075
|
0.75 | 1.19 | 600 | 6 | 0.54 | Textile plies and wire helix |
|
2909GN-0100
|
1 | 1.47 | 800 | 2.5 | 0.56 | Textile plies and dual wire helix |
|
2909GN-0150
|
1.5 | 1.97 | 800 | 3 | 0.8 | Textile plies and dual wire helix |
|
2909GN-0200
|
2 | 2.5 | 800 | 4 | 1.15 | Textile plies and dual wire helix |
|
2909GN-0250
|
2.5 | 3 | 800 | 5 | 1.41 | Textile plies and dual wire helix |
|
2909GN-0300
|
3 | 3.55 | 800 | 6 | 1.89 | Textile plies and dual wire helix |
|
2909GN-0400
|
4 | 4.61 | 800 | 8 | 2.69 | Textile plies and dual wire helix |
