1503
Product Specifications

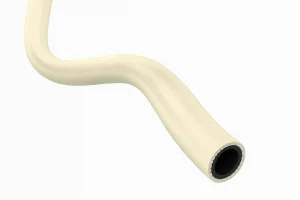

- A premium oil-resistant and non-conductive multipurpose hose
- Designed to meet a minimum of 1megohm per inch at 1000 volts DC
TUBE MATERIAL
Nitrile
COVER MATERIAL
Nitrile Blend
PRIMARY APPLICATION
Air/Water
TEMPERATURE MIN. (F)
-20
TEMPERATURE MAX. (F)
210
Our Range of Products
Export Specifications
| PART # | HOSE I.D. (inches) | HOSE O.D. (inches) | Working Pressure (PSI) | Burst Pressure (PSI) | Min. Bend Radius (Inches) | WEIGHT: LBS / FT | REINFORCEMENT |
|---|---|---|---|---|---|---|---|
|
1503-0025
|
0.25 | 0.62 | 300 | 1200 | 1.5 | 0.16 | 4-Ply Textile |
|
1503-0031
|
0.31 | 0.64 | 300 | 1200 | 2 | 0.19 | 4-Ply Textile |
|
1503-0038
|
0.38 | 0.69 | 300 | 1200 | 3 | 0.19 | 4-Ply Textile |
|
1503-0050
|
0.50 | 0.86 | 300 | 1200 | 4 | 0.26 | 4-Ply Textile |
|
1503-0063
|
0.63 | 1.06 | 300 | 1200 | 6 | 0.38 | 4-Ply Textile |
|
1503-0075
|
0.75 | 1.19 | 300 | 1200 | 6 | 0.42 | 4-Ply Textile |
|
1503-0100
|
1.00 | 1.50 | 300 | 1200 | 8 | 0.62 | 4-Ply Textile |
|
1503-0125
|
1.25 | 1.78 | 250 | 1000 | 9 | 0.81 | 4-Ply Textile |
|
1503-0150
|
1.50 | 2.03 | 250 | 1000 | 10.5 | 0.95 | 4-Ply Textile |
