EC115
Product Specifications

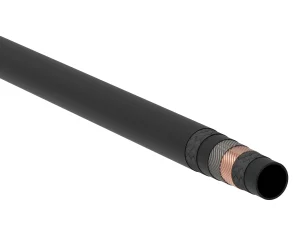

- Winner Braided Hose
- For hydraulic system service with petroleum & water based fluids, general industrial service
TUBE MATERIAL
Synthetic rubber
COVER MATERIAL
Synthetic rubber
PRIMARY APPLICATION
Hydraulic / Fluid Power
APPROVALS
MSHA, DNV-GL, USCG
TEMPERATURE MIN. (F)
-40
TEMPERATURE MAX. (F)
212
INDUSTRY STANDARDS
SAE 100R1
2ND STANDARD
EN857 1SC
Our Range of Products
Export Specifications
| PART # | HOSE I.D. (inches) | HOSE O.D. (inches) | Working Pressure (PSI) | Burst Pressure (PSI) | Min. Bend Radius (Inches) | WEIGHT: LBS / FT | REINFORCEMENT |
|---|---|---|---|---|---|---|---|
|
EC115-04
|
0.25 | 0.50 | 3250 | 13000 | 1.97 | 0.12 | 1 Wire Braid |
|
EC115-06
|
0.38 | 0.63 | 2600 | 10400 | 2.48 | 0.17 | 1 Wire Braid |
|
EC115-08
|
0.50 | 0.77 | 2300 | 9200 | 3.54 | 0.23 | 1 Wire Braid |
|
EC115-10
|
0.63 | 0.88 | 1900 | 7600 | 3.94 | 0.28 | 1 Wire Braid |
|
EC115-12
|
0.75 | 1.02 | 1525 | 6100 | 4.72 | 0.34 | 1 Wire Braid |
|
EC115-16
|
1.00 | 1.33 | 1275 | 5100 | 6.30 | 0.50 | 1 Wire Braid |
|
EC115-20
|
1.25 | 1.62 | 925 | 3700 | 8.27 | 0.67 | 1 Wire Braid |
|
EC115-24
|
1.50 | 1.89 | 725 | 2900 | 11.81 | 0.81 | 1 Wire Braid |
|
EC115-32
|
2.00 | 2.41 | 580 | 2320 | 15.75 | 1.01 | 1 Wire Braid |
